Leica Lino L6G Self Levelling Green Laser Kit

KEY FEATURES

Range up to 35m (70 m with receiver)

Horizontal & 2 vertical 360° red laser lines

Robust spray proof / dust protected IP54

Impact resistant rubber housing

Easy positioning & self-levelling (± 4°)

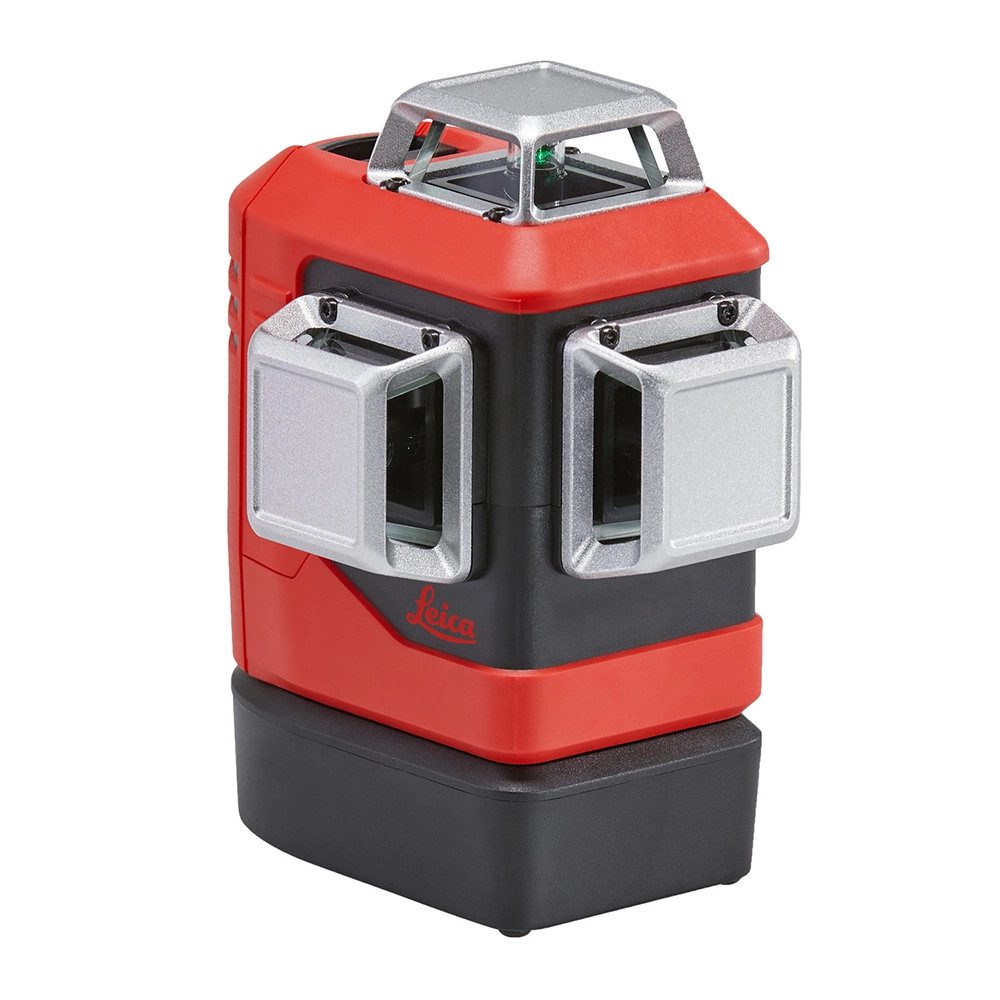

The Leica Lino L6G Self-Levelling Green Multi-Line Laser is a precision tool that produces three ultra-strong 360° thin, crisp and clearly visible green laser lines are ideal for bright environments and large work environments.

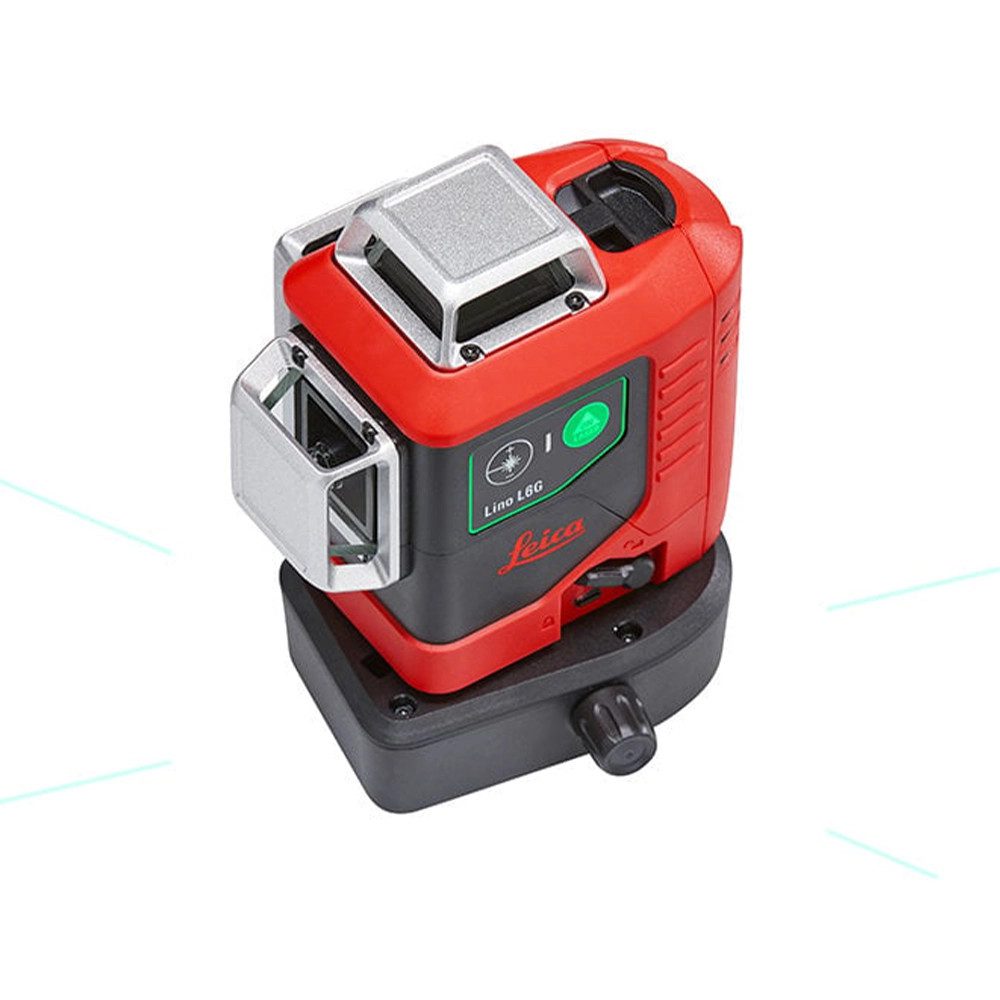

The vertical laser lines projected to walls and ceilings are easily adjusted once the plumb point is set. The integrated base of this line laser allows you to position the cross section (plumb point) of the two vertical laser lines where it is required and you then can adjust the position of these lines by ± 10° while keeping the position of the plumb point.

The triple power concept assures an uninterrupted workflow of any layout tasks. Rechargeable Li-Ion batteries last for up to 11 hours of continuous operation.

To further increase the operating time, the laser line strength is adjustable (100/75/50 percent) which has the added benefit of thinner laser lines. Alternatively, Alkaline batteries or a charger can be used.

This green laser lines achieve a working range of up to 70 meters / 230 feet in diameter, making it perfect for larger rooms and bright environments. The maximum operating distance can be extended up to 140 meters / 460 feet by using the RGR200 laser receiver.

A shock absorbent design, plus spray water and dust protection (IP54) make this green multi-line laser fit for any construction site.

With precision adjustment handles, and the laser’s eccentric base allow the laser lines to rotate by ± 10° around the plumb point while the line-laser keeps its position; allowing for quick and precise setup for any alignment, plumbing, levelling or squaring tasks.

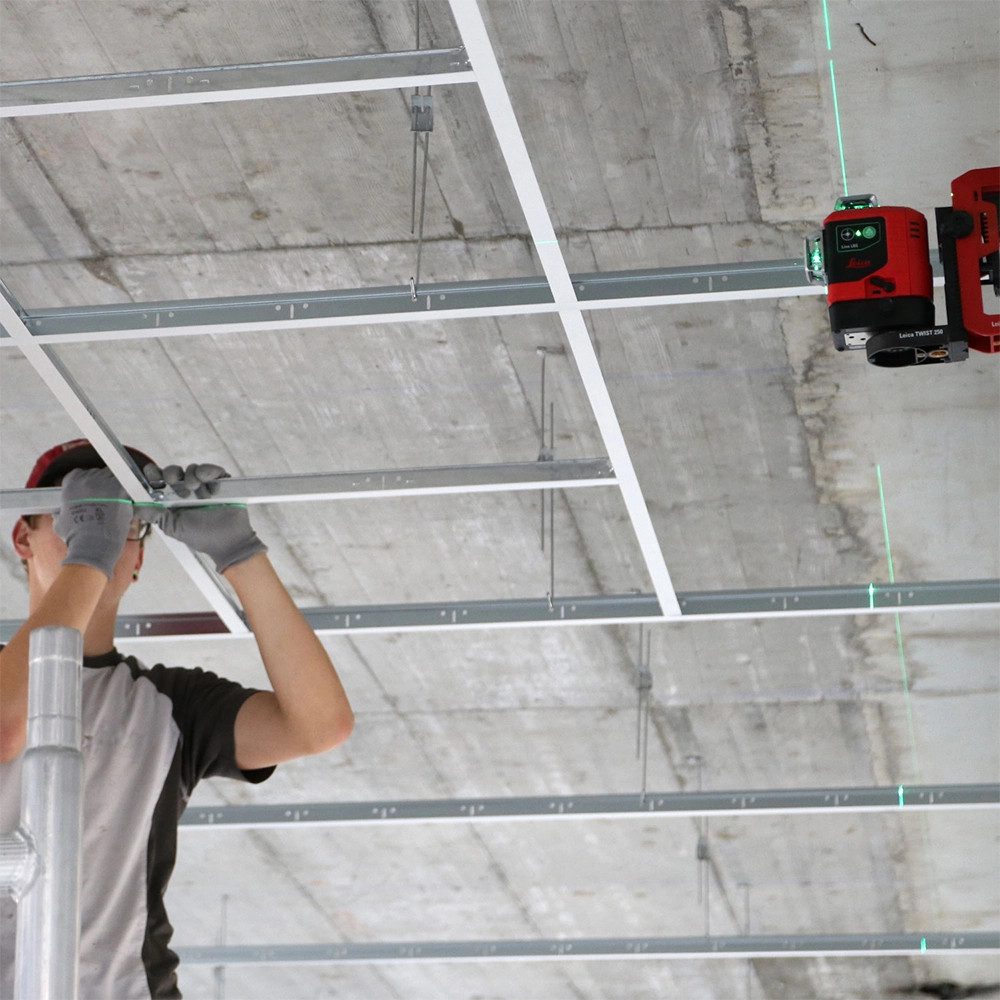

The Lino L6G is easily attached to a variety of surfaces. The magnetic adapters fit into U-profiles and with the addition of the UAL 130 adapter this green multi-line laser is easily attached to edges, metal poles, and bars. This is ideal for suspended ceiling installations, transferring reference heights or complex drywall installations in large rooms.

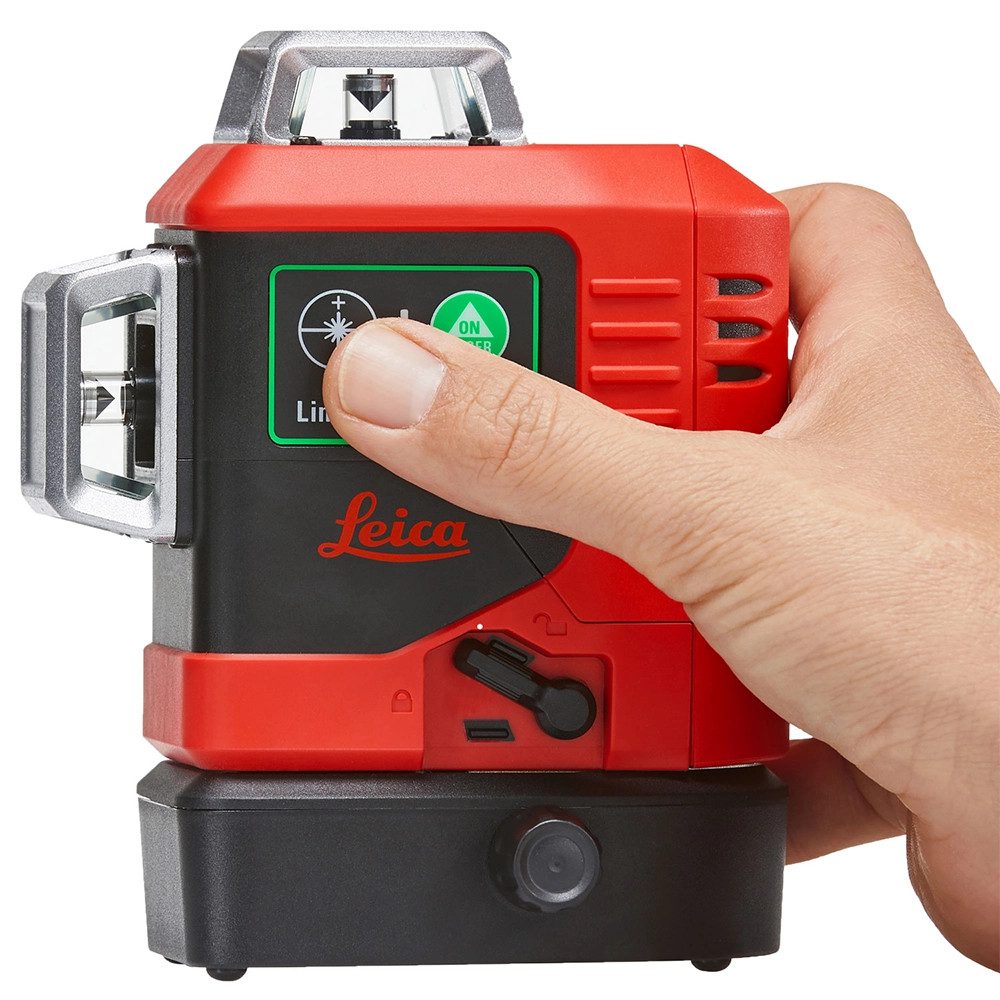

You can individually select each green 360° laser line to be turned on or off when the device starts up; meaning your laser line settings and their intensity are saved on the device and it is ready to use when it’s turned on.

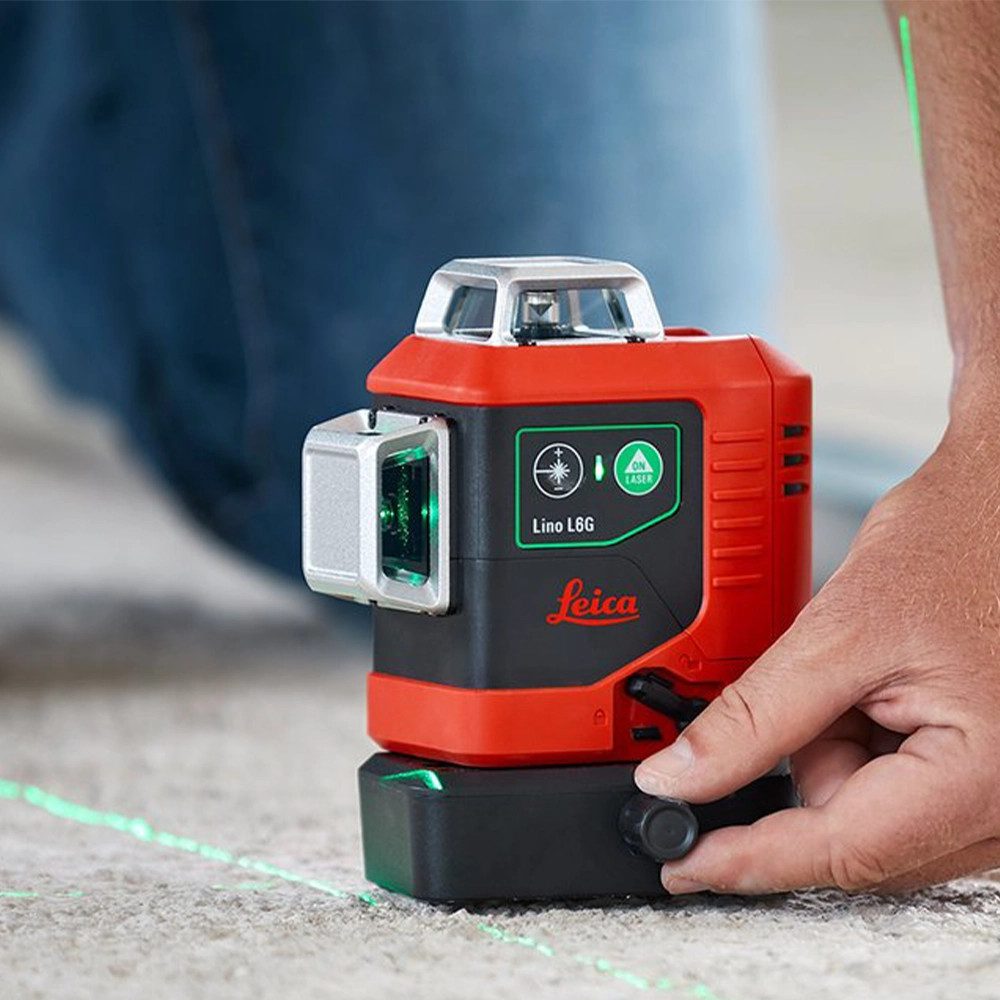

The Lino L6G is a self-levelling multi- line laser. It automatically adjusts its positioning up to ± 4° when it is slightly out of level without any manual alignment.

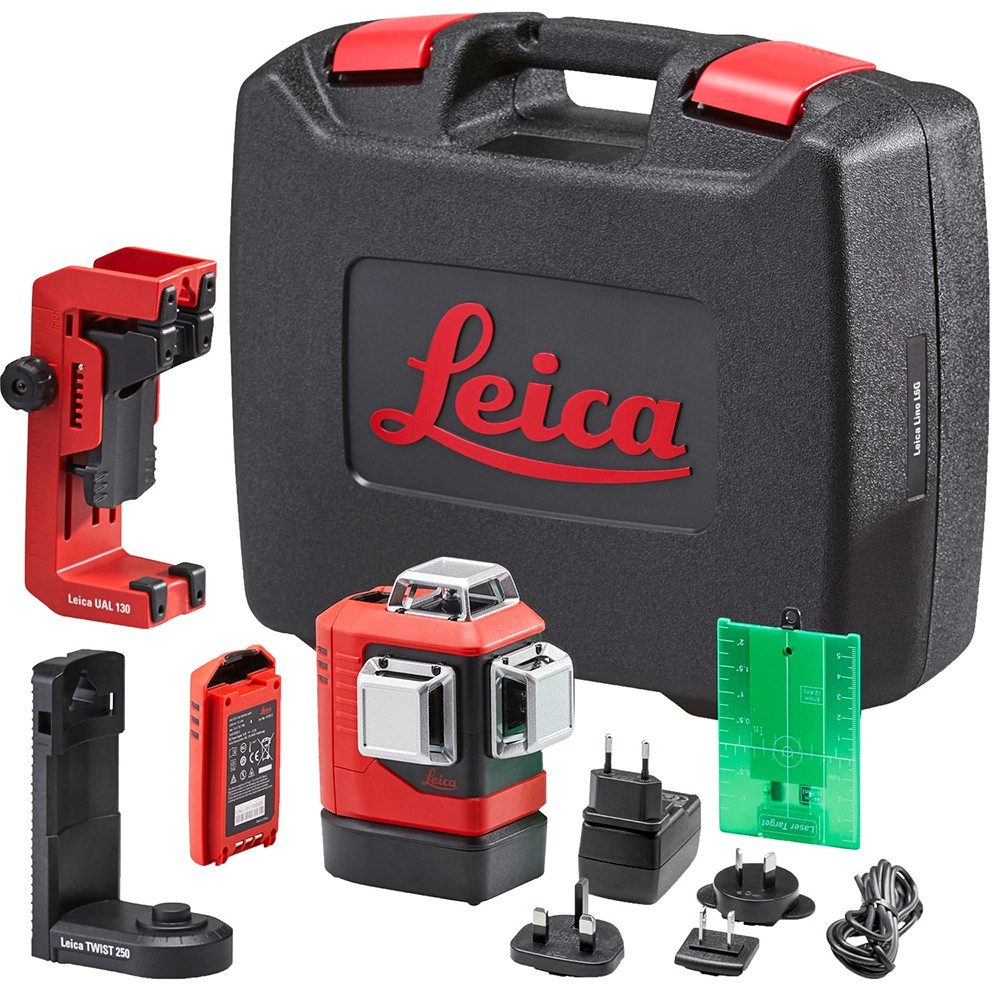

WHAT’S IN THE BOX

1x Leica Lino L6G Line Laser

1x Li-Ion battery pack

1x Battery Charger

1x Alkaline battery tray

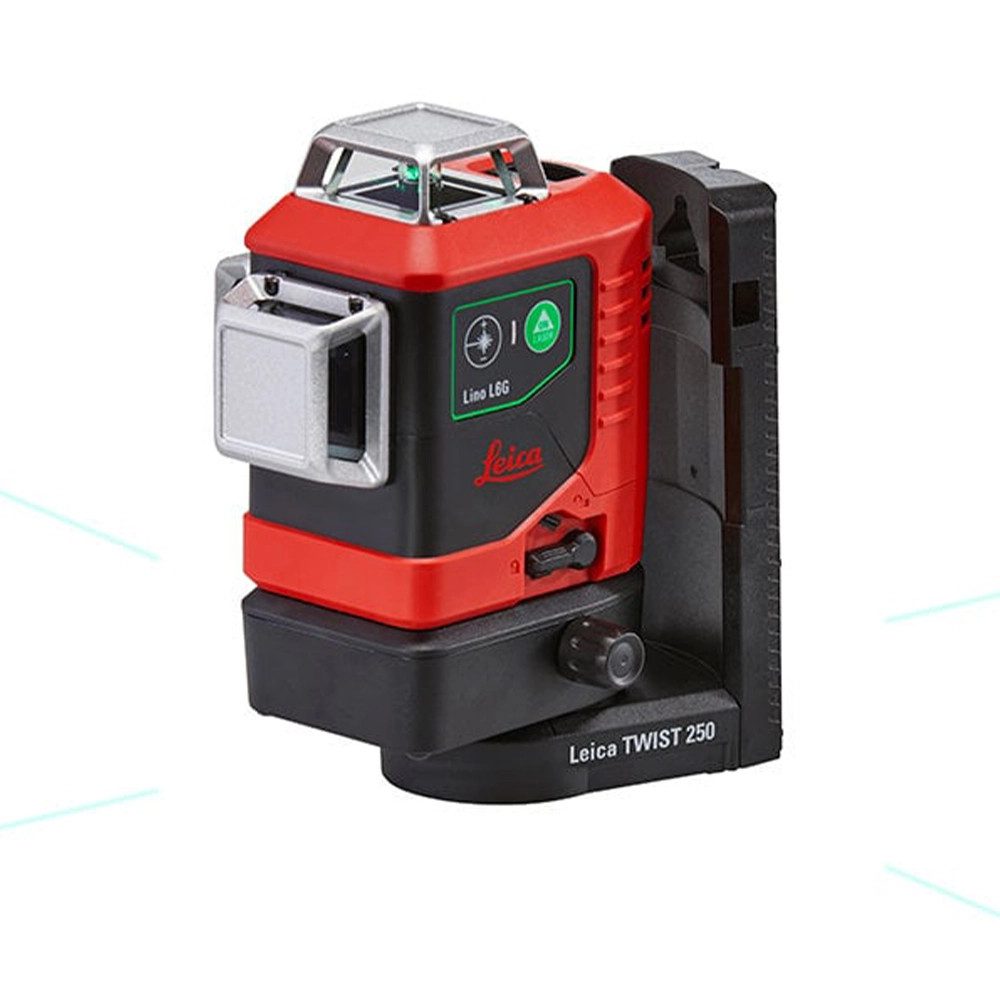

1x Leica TWIST 250 adapter

1x UAL 130 wall mount

1x Laser target plate

1x Rugged carry case
