(722967)

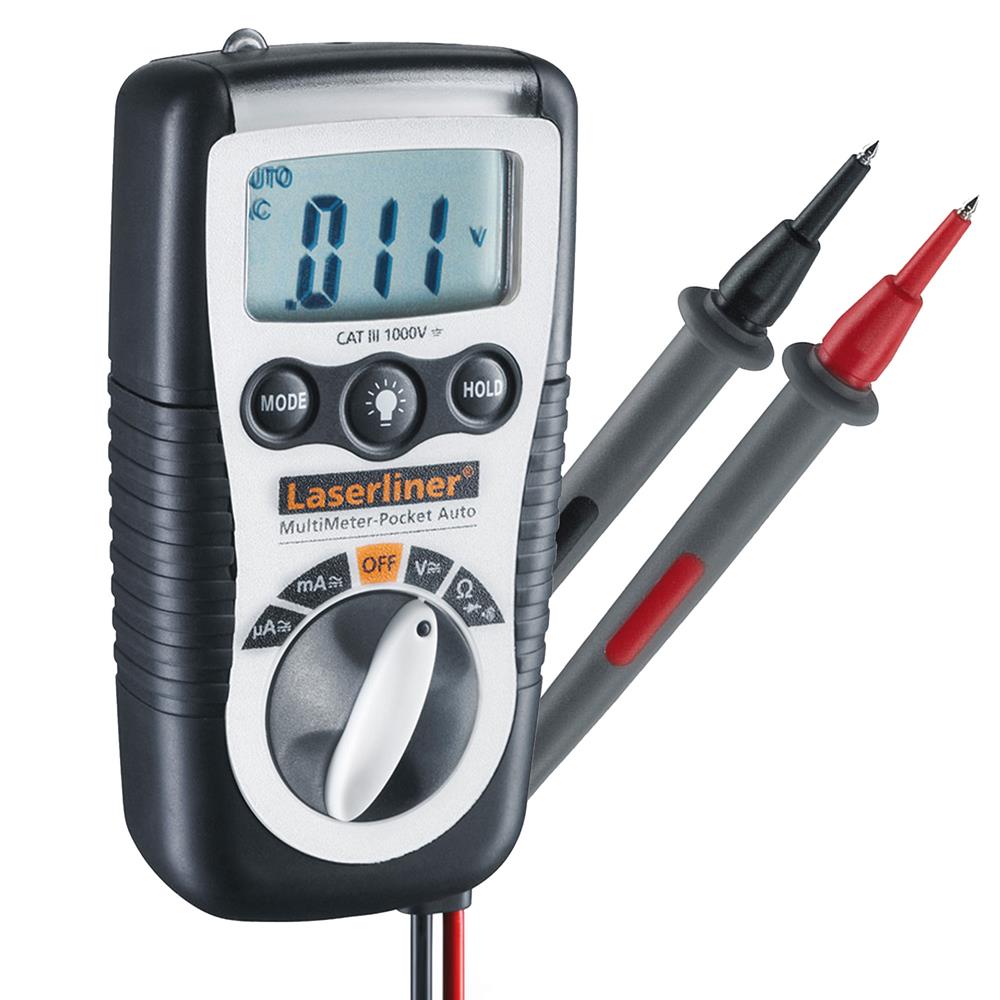

LaserLiner 083032A Universal Pocket MultiMeter.
Fully protected universal multimeter, for taking measurements in the range of voltage category CAT III up to max 1000v. Can be used for measurements in all building installations.
Reliable, fast and precise voltage, current and resistance measurement. Automatic continuity tester with acoustic signal.
Diode test function for determining integrity and polarity. Fully protected design in all measuring ranges prevents operating errors.
Automatic function and range changeover without reconnecting cables. CAT III – 1000 V – can be used for measurements throughout building installations.
Integrated contactless voltage indicator with acoustic and visual warning. High measurement resolution for precisely determining different measurement variables.
Data HOLD function for measuring in inaccessible places. Super-bright integrated flashlight for illuminating test point.
Rugged, practical enclosure with safe, dualcoated test prods. Large, easy-to-read LC display.
Max Input Voltage: 600V AC/DC
Voltage Range: DCV: 0…600 V ±0.5% ACV: 0…600 V ±1.2%
Current Range: DCA: 0…200 mA ± 2.0% ACA: 0…200 mA ± 2.5%
Resistance Range: 0…20 Mohm ± 0.8%
Continuity Test: Resistance range <1.5 kohm
Overvoltage Category: CAT III – 1000 V, pollution degree 2
Fuse: mA, μA range: 0.2 A/500 V
LC Display: Up to 1999 (3.5 segments)
Type of Protection: IP 64
Power Supply: 2 x 1.5V AAA (NEDA24A/IEC LR 03)
Operating Temperature: -10 °C…55 °C
Weight: 145g

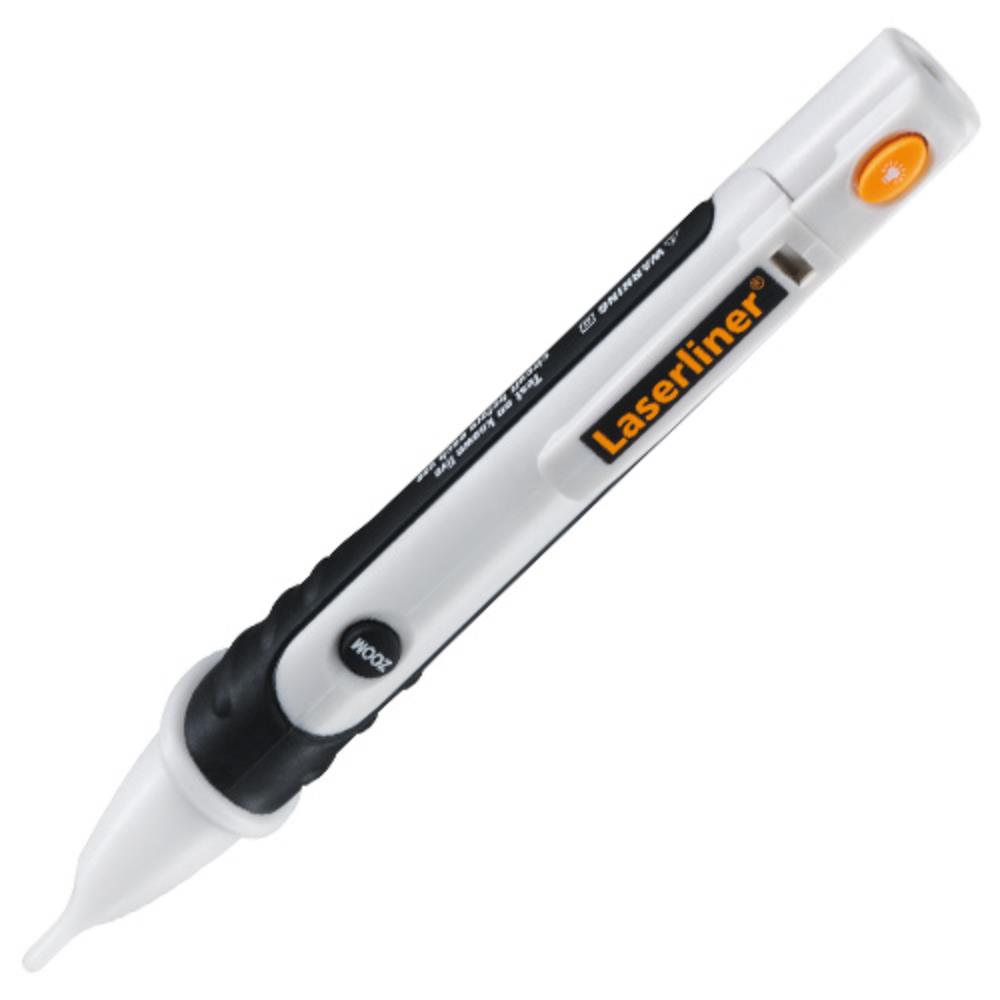

Laserliner 083010A Contactless Voltage Tester
LAS083010A
(156612)
KEY FEATURES
Locates electrical voltages 24-1000V AC
Tracing lines at depths (zoom)
Clearly visible LED
Super-bright, integrated flashlight
Rugged, impact-resistant casing
