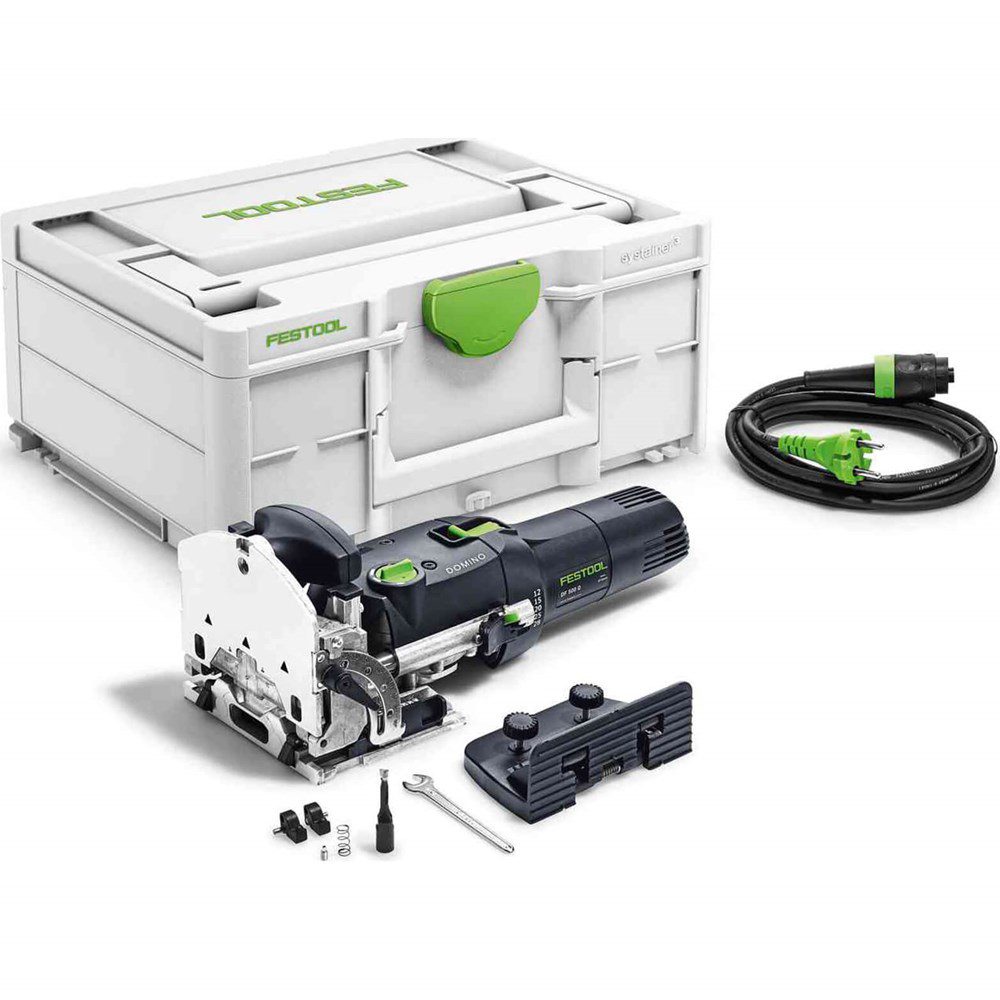

Festool 240v Domino Joiner Of Your Choice

The Festool DF500 domino joining system is a must have tool for joiners and cabinet makers. The oval shape of the dominos provides a larger glued area and more stability. The DOMINO system unites the precision of a round dowel with the flexibility of a traditional flat dowel – the perfect solution for panel joints. The system consists of the DF 500 dowel jointer, DOMINOs in different sizes and a wide range of accessories for special applications. The result: extremely strong, invisible joints. And DOMINO can do much more: rack joints, frame joints, drawer joints, etc. Supplied with 5mm cutter, additional stop and Systainer 2 case.

Furniture manufacture
Shopfitting / Interior fitting
Window construction
Exhibition stand construction
For panel joins
For frame and rack joints

Power consumption – 420w
Idle engine speed – 25500 min­¹
Depth stop for routing depth – 12, 15, 20, 25, 28mm
Max. milling depth – 28mm
DOMINO slot cutter Ø – 4, 5, 6, 8, 10mm
Routing height adjustment – 5-30mm
Mitre routing – 0-90°
Connection Ø d/e – 27mm
Weight – 3.2kg

DOMINO cutter D5
Support bracket
Operation tool
Comes in a SYSTAINER SYS 2 T-LOC

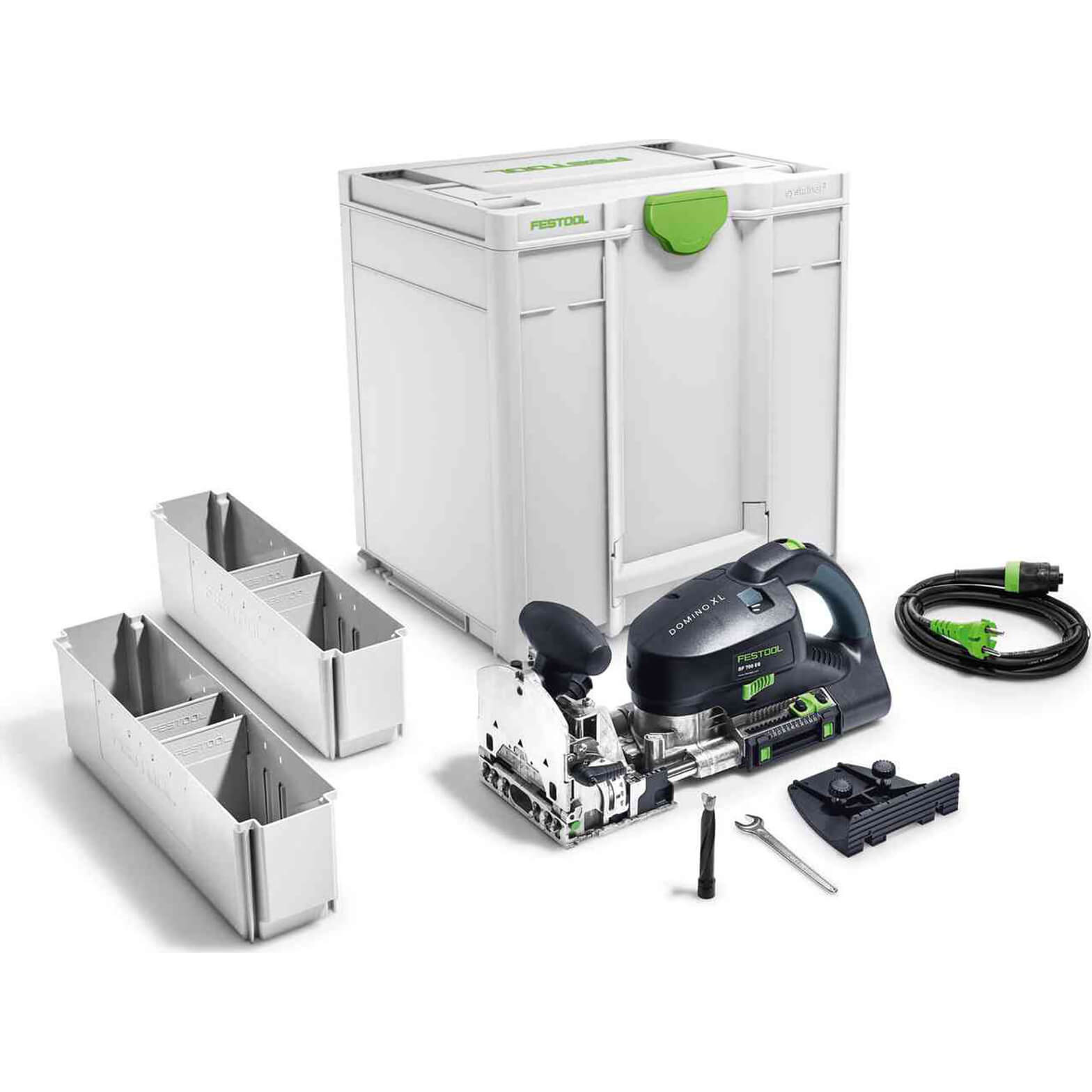

Festool DF700 EQ-Plus 240v Domino XL Joining Machine in Systainer 5

Description

The Festool DF700EQ Plus GB Domino joining machine is a must have piece of equipment for any joiners or cabinet makers.

Comes to the workpiece and not vice versa: DOMINO XL. The oval shape of the dominos provides a larger glued area and morestability. The DOMINO system unites the precision of a round dowel withthe flexibility of a traditional flat dowel – the perfect solution forpanel joints. Quick, simple,precise and extremely stable – with measurably shorter tooling times andup to 50% time-saving in comparison to stationary machines. The DOMINOXL is therefore ideally suited for furniture and door construction and solid wood joints. Supplied with 12mm cutter, additional stop, empty dowel box and Systainer case.

Features and Benefits:

DOMINO joining system DF 700 DF 700 EQ -Plus GB 240V

Extra mobile. Extra stable.

Maximum stability of joints up to a dowel size of 14 x 140 mm

Patented routing principle unique to handheld machines for accurate work with no kickbacks

Stops that are quick and easy to adjust, for accurate results

System accessories compatible with both DOMINO jointers

Solid wood furniture in frame and tunnel design

Frame construction of house doors and interior doors

Manufacture of tables and chairs

Creation of stable mitre joints

Folded and profiled door frames in furniture construction

Connection of wide cornices (e.g. plates)

Frame and stand constructions in non -supported timber structure (exterior and interior area)

Technical data:

Power consumption – 720W
Idle engine speed – 21000 min -1
Depth stop for routing depth – 15 -70mm
DOMINO slot cutter Ø – 8, 10, 12, 14mm
Routing height adjuster with scale – 10 -50mm
Movable stepped stop – 10, 15, 20, 25, 30, 40 mm
Mitre routing – 0 -90°
Connection Ø d/e – 27mm
Weight – 5.2 kg

Items Included:

DOMINO cutter D 12
Support bracket
2 x dowel storage box
Operation tool
Comes in a SYSTAINER SYS 5 T-LOC
